Karen’s Workbench – Week of Workbenches

Viewer Project - By Karen
Added on July 22, 2009

I am fairly new to woodworking, although I started a few years ago. My time has been limited and my progress slow. I made an outfeed table for the table saw. It was never intended to serve as a workbench but space issues led to it being drafted into that role. The more I tried to work with it, the more I realized that I needed a surface that would stand still and one that would allow for a vise. Then FWW came along with their Getting Started in Woodworking series. I had found the workbench that fit both my skills and my garage/shop.

The base was built according to the original plan. The legs are 4×4 cedar and the stretchers are pine 2×4’s. Everything was assembled with 3/8” threaded rod. I had never used my router and ran into trouble getting it into the plunge base. Then after I routed the grooves for the rod, I had trouble getting the bit out of the router. Both situations were resolved with quick visits to the chat room. I took more liberties with the top. It started out with two layers of 3/4″ MDF glued and screwed together as called for in the plan. At that point, I decided to use a different vise. I created a post on the forum and was directed to a vise that fit my needs. Then I added poplar around the edges attached with screws. The screw holes were filled with oak dowels. Yes, using dowels to fill screw holes was new to me too. Again, I popped into the chat room for a quick answer. Then it was time for dog holes. I was hesitant to try to use a forstner bit to drill a 1 ½” deep hole with a hand held drill. The chat room came through again and I was off to buy an Auger bit. After lots of dog holes and three coats of paste wax, I pronounced it finished. My shop built bench dogs are almost finished too.

There are lots of things that didn’t turn out perfectly. In fact, when I pushed it up behind the table saw, I found it was just about ¼” too tall to serve as an outfeed table. It is way too heavy for me to turn over. In fact, I had to pay a couple of high school boys to turn it over at one point. After a bit of consideration, I decided that if lowering the bench was not possible, why not raise the saw? A couple of pieces of ½” plywood under the legs inside the mobile base did the trick. Thanks Marc for creating such a warm, friendly, and helpful community.

Discussion

Dave H July 22, 2009 8:59 am

Nice execution of the FWW design. I am working on my own update to that design myself. I am not sure I get what the holes in your apron there are for though. Is that for Board Jacks?

You might want to cut that all thread before you hook a shin on it. That REALLY hurts…

It’s easy to cut with a hacksaw and a metal cutting blade, both are CHEAP at the hardware store… Lacking that, if you have a rotary tool and cut off wheel, that will work too…

Reply
- emmrys July 23, 2009 4:05 pm

  If Board Jacks are what I think they are (something to hold a long board across the front of the bench) then YES that is what those holes across the front are for. I have some extra 3/4″ dowel that works just fine for that.

  As for the threaded rod sticking out, I have a plan for that. The right end of the bench sits up close to some shelves and I don’t go in that space much. I left it long so that I can use it to attach some removable storage. I don’t have that part planned out yet except for a piece to hold my electrical strip and a safety switch. I may cut some of the length off after I work out the storage though.

  Reply
Charles July 22, 2009 10:39 am

Nice job! I want one! You can always trim the legs a bit if you want to use it as an outfeed table.

Reply
- emmrys July 23, 2009 4:06 pm

  Since I raised the saw a bit the height is just fine for an outfeed table.

  Reply
Sharon July 22, 2009 10:48 am

looks fantastic. this is the same design I used for my first bench, and it served me VERY well!.

seems like this bench has done what it’s supposed to: 1. give you a sturdy work area, and 2: take you through new woodworking experiences.

congrats!

Reply
- emmrys July 23, 2009 4:07 pm

  Thanks, it does just what I need it to do.

  Reply
Matt Berger July 22, 2009 2:32 pm

Karen, what a great riff on our Getting Started bench. I LOVE the wide hardwood trim around the bench top. That will make it tougher and more versatile.

Here’s a link for anyone interested in the plans and step by step video instructions: http://www.taunton.com/finewoo.....on-two.asp

Reply
- thewoodwhisperer July 22, 2009 3:56 pm

  whoops! Dropped the ball on that one. I just added the link to the video series into Karen’s writeup. Thanks Matt!

  Reply
- emmrys July 23, 2009 4:18 pm

  Matt, thanks for your kind comments and your wonderful video series. I was so excited when I saw this workbench. It was just the right combination of function (with a vise), sturdy, and simple to build. There is no telling how many times I went back to watch those videos over and over to get the details as I went along.

  I added the wood edge so that I wouldn’t tear up the MDF over time. The front piece sits in front of the front apron so there is a space that allows for clamping to it.

  Thanks again and for taking time to comment.

  Reply
Jim July 23, 2009 8:55 am

I like it! I made something similar but I recessed the MDF and covered it with a .25″ layer of hardboard screwed down on the corners. That allows me to change the top if (when) I damage it.

Reply
- emmrys July 23, 2009 4:22 pm

  I thought about doing a replaceable top skin but decided against it. I already had several new things I was trying out. Maybe someday if I wear out this top I will do one like that. One good thing about this bench is that the top and legs can be easily separated to replace either one without having to rebuild the other.

  Reply
Sam Clark October 1, 2009 4:52 am

Karen,

I too am fairly new to woodworking, and I am building the same bench from the same plans! Yours looks great! I still have a little work to complete it, but yours gives me some ideas! Interesting you went with cedar for your legs. I ended up laminating mine from two 2x4s and a 1/2″ ripped piece from another 2×4.

Looks great!
Sam

Reply
Peter November 30, 2009 10:21 pm

Great work! I’m hoping to build a similar table soon. I’ve been a bit of a price junkie lately – can I ask where you got the wood, and how much it cost you?

Reply
- emmrys April 3, 2010 5:49 am

  Sorry I didn’t see your comment until now. I got all the wood from my local big box store except the cedar posts for the legs. I found the cedar 4x4s a the lumbar yard. They were 8 feet long and they cut them in the middle for me.

  Reply
Steve Carroll June 6, 2011 12:54 pm

Hi,
This looks fantastic. I got a twelve foot 4×4 at the store instead of the two eight foot lengths. And learned a trick to cutting with my circ saw. Cut it to the full depth, then rotate the board 90 degrees towards you and use the kerf to guide the saw to a straight cut.

But I’m having trouble with the legs. The holes I drill for the truss rods are intersecting. How do you drill a straight hole without a drill press ( I only have a hand drill).
Thanks,
Steve

Reply
- Emmrys June 7, 2011 4:46 am

  Steve, I tried to use my circ saw to cut the 4×4 legs. Unfortunately I hit a knot that loosened the blade. I didn’t realize what had happened until I had already made the cuts with a hand saw.

  The holes for the rods are close together but can’t be crossing to work. Getting them straight is critical to assembly. I used a hand drill with a Drill Guide (like this: http://www.homedepot.com/h_d1/.....ogId=10053). I clamped the base of the guide to my board and it worked fine.

  Be sure to post pics.

  Reply
Eric July 17, 2011 12:17 pm

Hi, great job on the workbench! I am planning to build one and yours is exactly what I was planning to do with mine.. What kind of vise is that and where did you get it if you don’t mind? Also what size board did you use for the front edge of the top?

Reply
Emmrys July 19, 2011 4:44 am

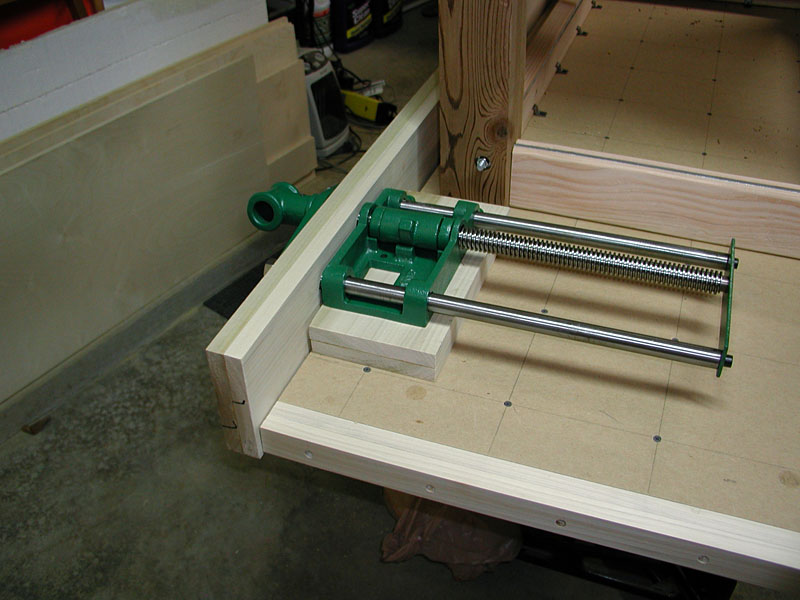

Hi Eric. I got suggestion for a vise on the old TWW forum and in the chat room. The one I chose is the Economy Quick Release Front Vise from Woodcraft http://www.woodcraft.com/Produ.....-Vise.aspx. The front edge of the bench is 5 1/2″ vertically. It is made of two boards each 3/4″ thick for a total thickness of 1 1/2′.

Reply
